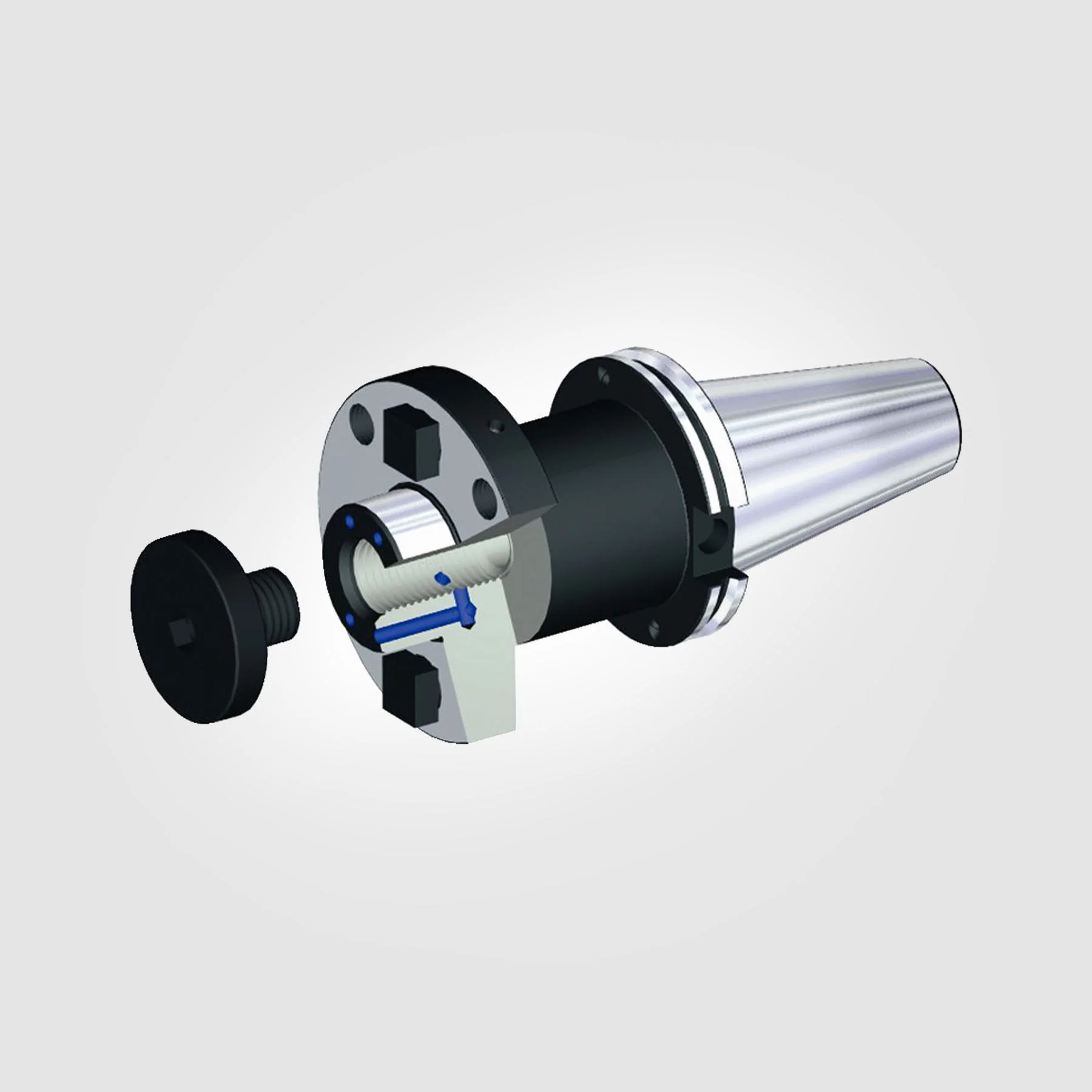

CV50 Steep Taper 2" Shell Mill Adapter (THROUGH COOLANT) 3640220

Machine Your Way to Success!

Improve your tool life and workpiece surface quality
Quicker and easier tool changes
High-performance holders, built to last

Technical Data

Adapter Type: Steep Taper
System Size: CV50

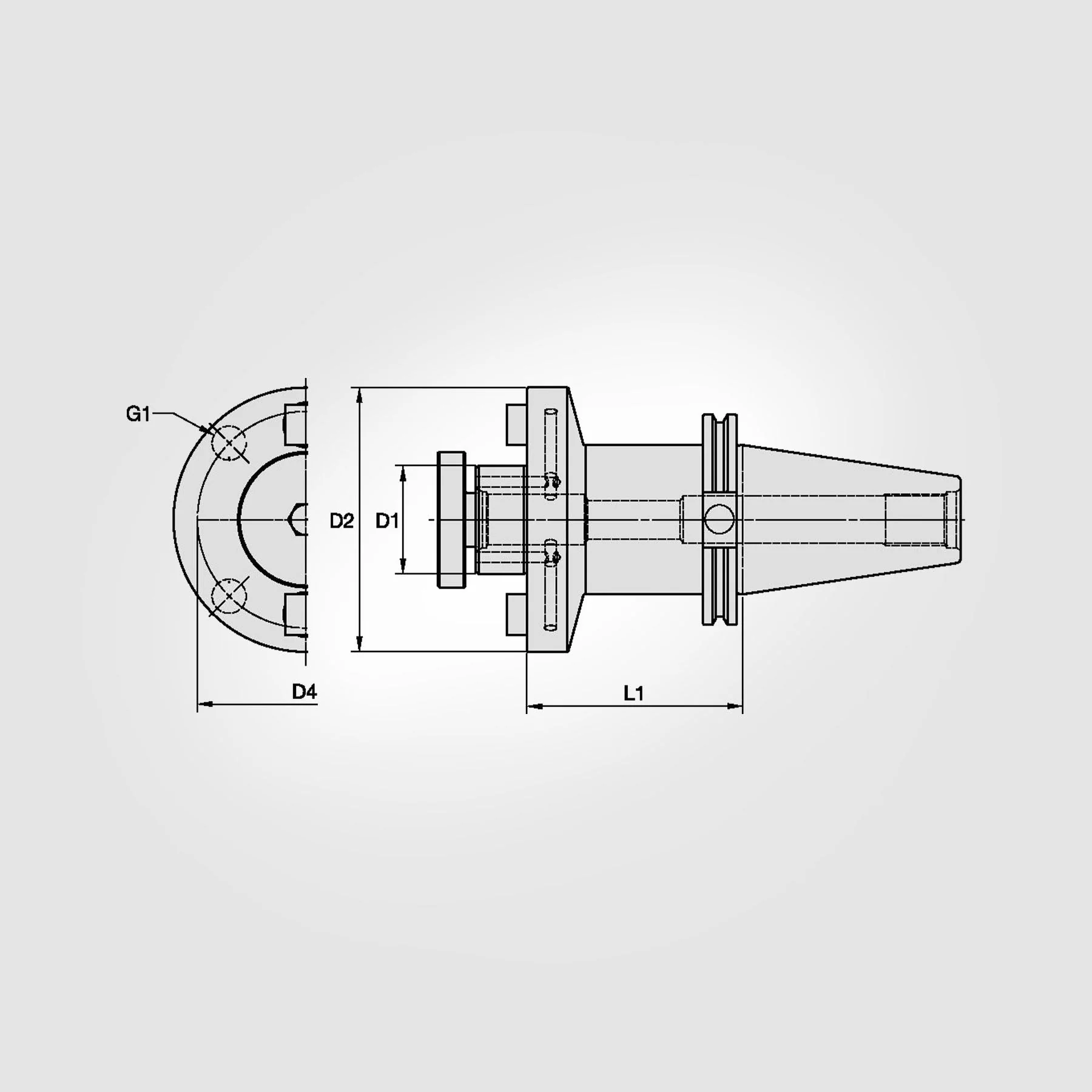

[D1] Adapter Diameter (Inch): 2.000"
[D1] Adapter Diameter (Metric): 50.800mm
[D2] Body Diameter (Inch): 4.880"
[D2] Body Diameter (Metric): 124.000mm
[L1] Gage Length (Inch): 2.400"
[L1] Gage Length (Metric): 60.960mm
[L] Overall Length (Inch): 7.338"
[L] Overall Length (Metric): 186.385mm
[L2] Usable Length (Inch): 2.400"
[L2] Usable Length (Metric): 60.960mm
[D4] Bolt Circle (Inch): 4.000"
[D4] Bolt Circle (Metric): 101.600mm
[G1] Bolt Circle Thread Size: 5/8-11 UNC
Through Coolant: Yes
Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.

$321.49

CV50 Steep Taper 2" Shell Mill Adapter (THROUGH COOLANT) 3640220—

$321.49
